B&O Railroad Museum Diesel Locomotives |
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio
collection
Baltimore & Ohio #633
Baltimore & Ohio #633
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio #633
to Baltimore & Ohio #9408
leased to Koppers Company
to Baltimore & Ohio Railroad Museum
Baltimore & Ohio #3684
Baltimore & Ohio #3684
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio #3684
blt Baltimore & Ohio #3684
to CSX Transportation #6500
to Baltimore & Ohio Railroad Museum
Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH

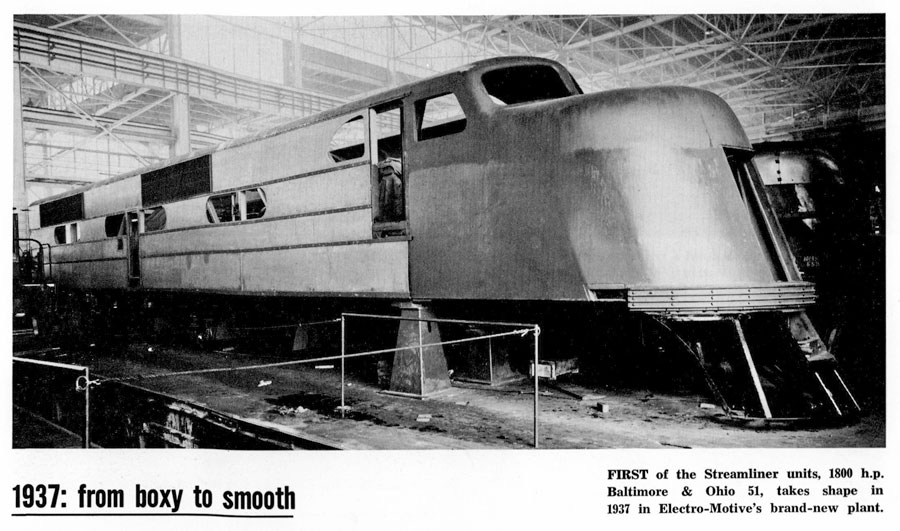

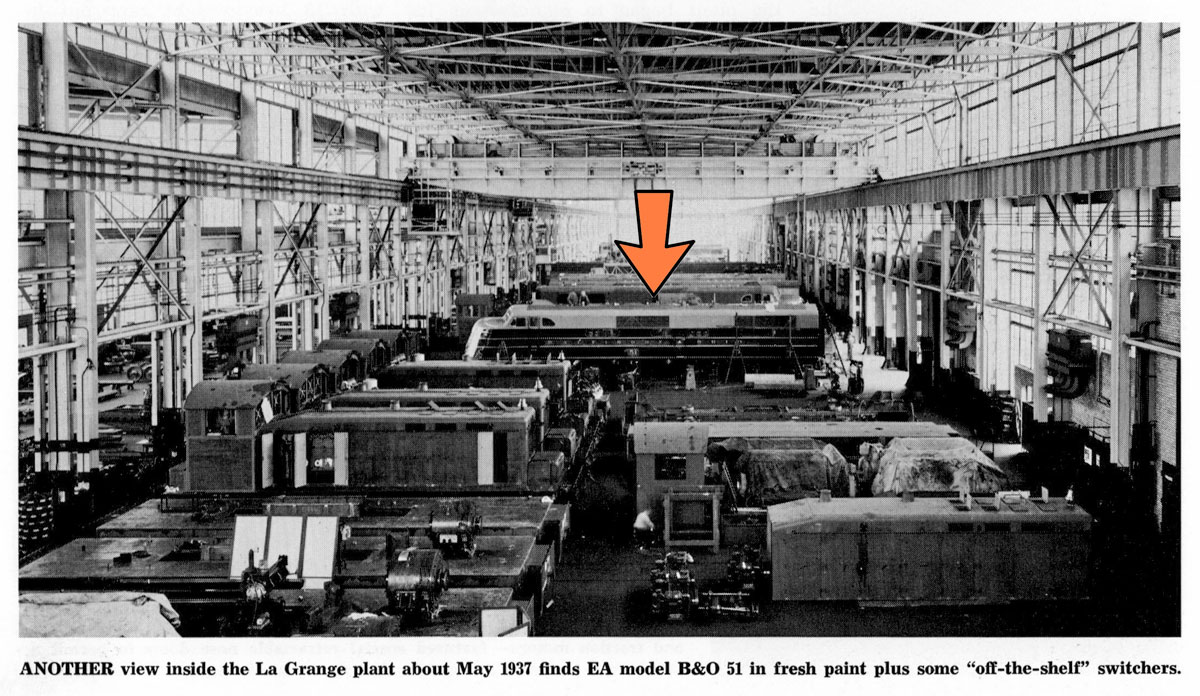

from Kalmbach: Our GM Scrapbook / collection
Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Fostoria, Oh / Sep 1990 / Bruce Gage
The GP-40 was the first locomotive on the B&O with a 3000 horsepower engine and alternator. The GP-40s that were purchased by the B&O were equipped with the rate of change wheel slip, which was developed by B&O Chief Electrical Engineer, C.M. Machin. This system detected wheel slips by the rate of current flow to the traction motors, rather than by a predetermined voltage difference. The GP-40s had a narrow cab unit and all were geared for 65 miles per hour.
The GP-40 was the first locomotive on the B&O with a 3000 horsepower engine and alternator. The GP-40s that were purchased by the B&O were equipped with the rate of change wheel slip, which was developed by B&O Chief Electrical Engineer, C.M. Machin. This system detected wheel slips by the rate of current flow to the traction motors, rather than by a predetermined voltage difference. The GP-40s had a narrow cab unit and all were geared for 65 miles per hour.
The No. 3684 was the very first of the 380 EMD model GP-40 locomotives placed in service by the B&O in November 1966. The B&O had the largest fleet of GP-40s in the country. They were versatile locomotives and could handle both manifest and heavy tonnage trains as well as hopper cars over poor mine trackage. The No. 3684 was later renumbered as CSX No. 6500 and repainted in CSX's blue and grey. In 1994, the B&O Railroad Museum returned the No. 3684 to its original B&O paint scheme. In 2006, it was restored once again by museum restoration staff.
Baltimore & Ohio Railroad Museum
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio #6607
Baltimore & Ohio #6607
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio #6607
to Baltimore & Ohio #6607
to Chessie System, CSX Transportation
to Golden Spike Railroad Services
to Baltimore & Ohio Railroad Museum
Baltimore, Md / Apr 2012 / Trey Holland
Baltimore & Ohio #6944
Baltimore & Ohio #6944
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio #6944
to CSX Transportation #4253
to Baltimore & Ohio Railroad Museum
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio #7402
Baltimore & Ohio #7402
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio #7402
blt Baltimore & Ohio #7402
assigned to mountain helper service
to CSX Transportation #4550
to Baltimore & Ohio Railroad Museum
The B&O No.7402 SD-35 was built by the General Motors, Electro-Motive Division (GM-EMD) in 1964. General Motors built 360 of these diesel locomotives between June 1964 and January 1966, 24 of which were purchased by the B&O in 1964. The SD-35 had a 3000 gallon fuel tank and a boxy appearance with a short underframe.
The B&O SD-35s were assigned to helper service to push trains up the steep grades of the Allegheny Mountains until they were replaced with the SD-50s. The No. 7402 was eventually renumbered as No. 4550 by CSX and was stored at the Queensgate Yard in Cincinnati, Ohio after its retirement. When the Baltimore & Ohio Railroad Museum acquired the No. 4550, the locomotive was painted in the Chessie System paint scheme. In 1995, the No. 4550 was restored and repainted to its original livery and road number.
Baltimore & Ohio Railroad Museum
Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Other Roads
Baltimore & Ohio Railroad Museum #9733
Baltimore & Ohio Railroad Museum #9733
Baltimore, Md / Mar 2016 / RWH
Baltimore & Ohio Railroad Museum #9733
to Milwaukee Road#706
to Central Wisconsin #1200
to National Railroad Museum, 1995
to Baltimore & Ohio Railroad Museum
The FM H-12-44 was a yard switcher produced by Fairbanks-Morse from May, 1950 – March, 1961. The units featured a 1,200-horsepower (890 kW), six-cylinder opposed piston engine prime mover, and were configured in a B-B wheel arrangement mounted atop a pair of two-axle AAR Type-A switcher trucks, with all axles powered and geared for a top speed of 60 miles per hour (97 km/h).
A total of 303 units were built for American railroads, 30 were manufactured (between August 1951 to June 1956) by the Canadian Locomotive Company for use in Canada, and 1 unit was exported to Mexico. Initially, H-12-44s were visually indistinguishable from their predecessor model, the FM H-10-44. However, beginning in September, 1952 the Raymond Loewy design elements were removed as a cost-saving measure: cab lines were squared-off, the slanted-nose styling was discontinued, and the roof visor was eliminated. The following year, the fairing over the battery box was removed and louvers added to reduce the possibility of battery explosions. None of the units were produced between May and October 1956, after which time the carbodies were shortened by some three feet and outfitted with a deeper side skirt. Sixteen intact examples of the H-12-44 are known to survive today, all of which are owned by railroad museums or historical societies.
Baltimore, Md / Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Baltimore & Annapolis #50
Baltimore & Annapolis #50
Baltimore, Md / Mar 2016 / RWH
Baltimore & Annapolis #50
(6 cyl, 600 hp)
to Baltimore & Ohio RR Museum, 1986
this locomotive also posted in Baltimore & Annapolis
Baltimore, Md / Mar 2016 / RWH
Mar 2016 / RWH
Baltimore, Md / 2000 / RWH
Baltimore, Md / Mar 2016 / RWH
Mar 2016 / RWH
Baltimore & Annapolis #87
Baltimore & Annapolis #87
Baltimore, Md / Aug 1994 / JCH
Baltimore & Annapolis #87
to Baltimore & Annapolis #87
to Baltimore & Ohio Railroad Museum
this locomotive also posted in Baltimore & Annapolis
Chadbourn, NC / Nov 2004 / Marc Henderson
See also our complete Baltimore & Annapolis scrapbook in Shortlines
Chesapeake & Ohio #6255
Chesapeake & Ohio #6255
Baltimore, Md / Aug 1994 / JCH
Chesapeake & Ohio #6255
to Baltimore & Ohio Railroad Museum
Connellsville, Pa / Jan 1980 / C.W. Lahickey
Canton Railroad #32
Canton Railroad #32
Baltimore, Md / Mar 2016 / RWH
Canton Railroad #32
to Patapsco & Back Rivers #331
to Striegel Equipment Company
to Baltimore & Ohio Railroad Museum
this locomotive also posted in Canton Railroad
Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
See also our complete Canton Railroad scrapbook in Shortlines
Pere Marquette #11
Pere Marquette #11
Baltimore, Md / Mar 2016 / RWH
Pere Marquette #11
to Chesapeake & Ohio #8401
to Baltimore & Ohio RR Museum, 1984
Baltimore, Md / Aug 1994 / JCH
Oct 1966 / Jeffrey Lawrence

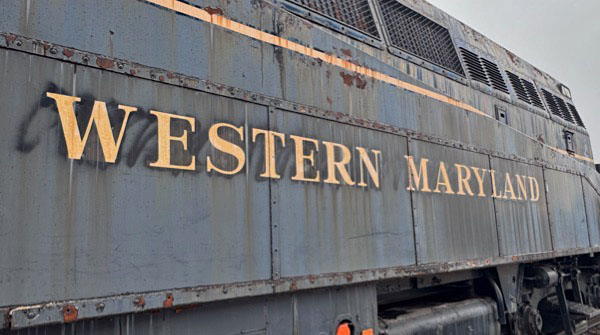

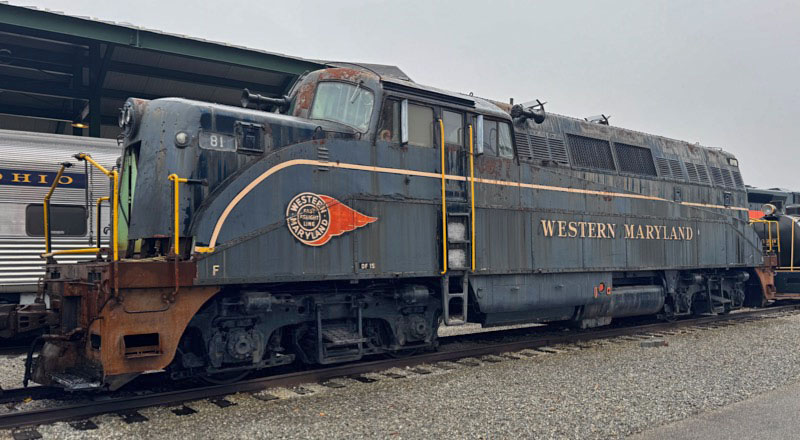

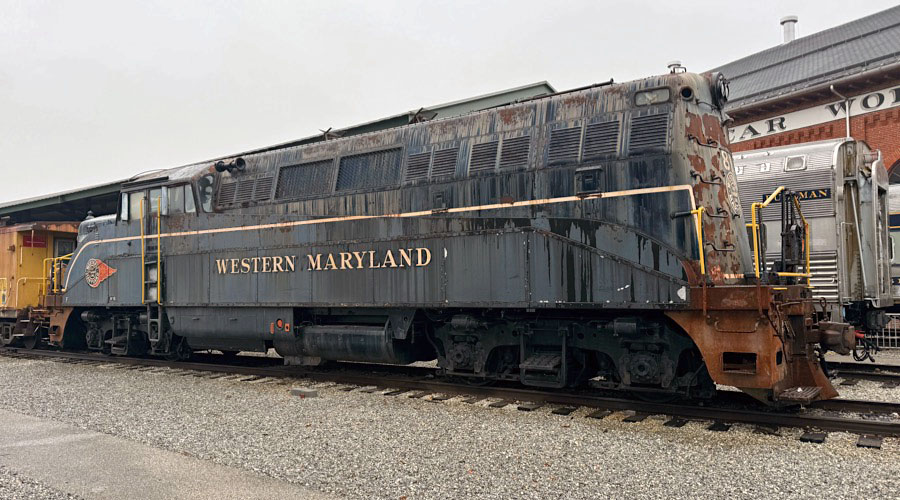

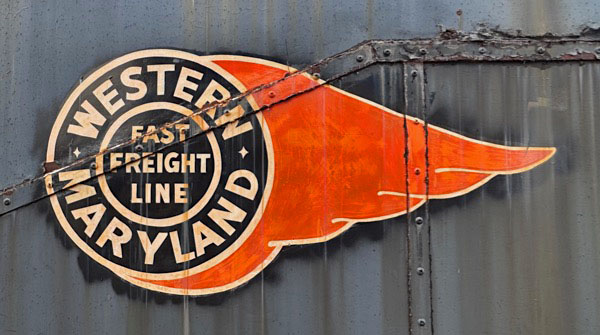

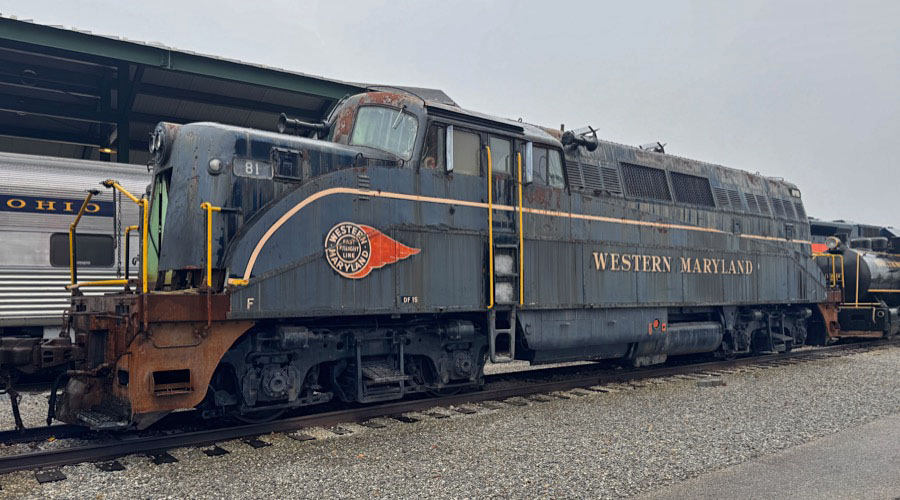

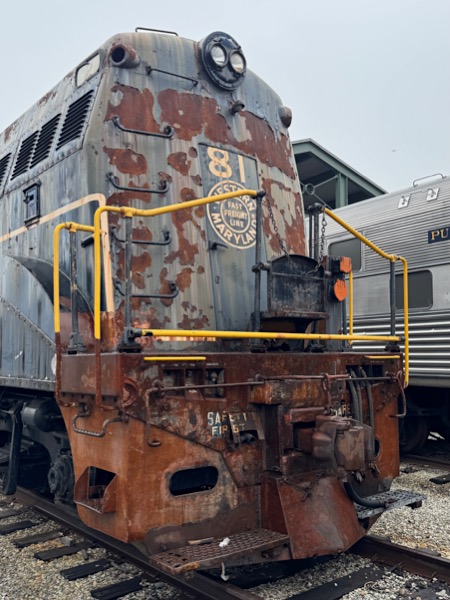

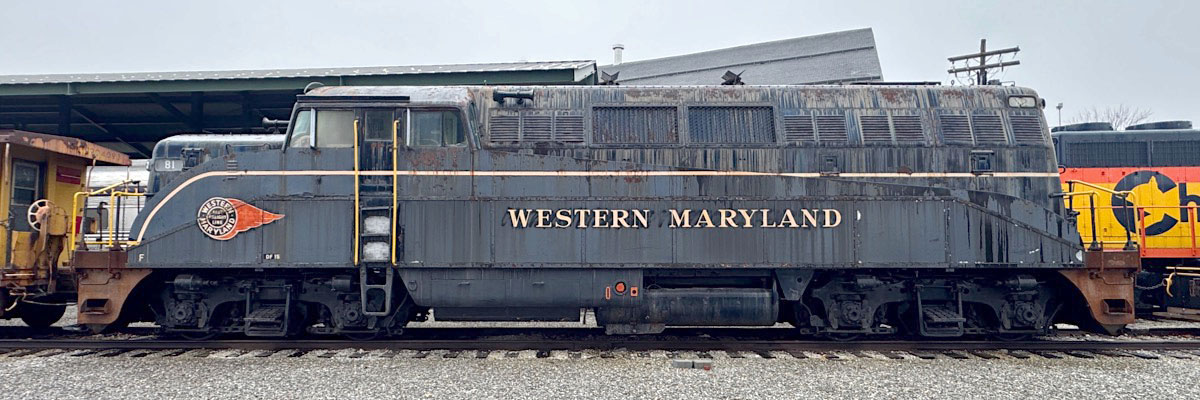

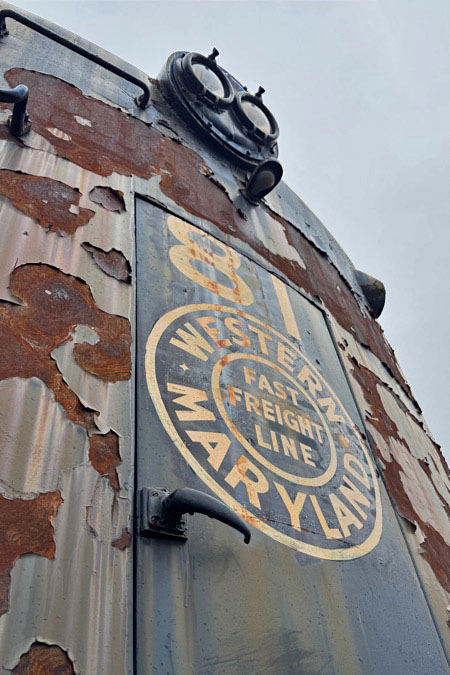

Western Maryland #195
Baltimore, Md / Mar 2016 / RWH
Western Maryland #195
to Baltimore & Ohio Railroad Museum
Baltimore, Md / Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Mar 2016 / RWH
Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Baltimore, Md / Mar 2016 / RWH
Baltimore, Md / 2000 / RWH
